AT-DGS-50kg Model Rice Packing Machine details

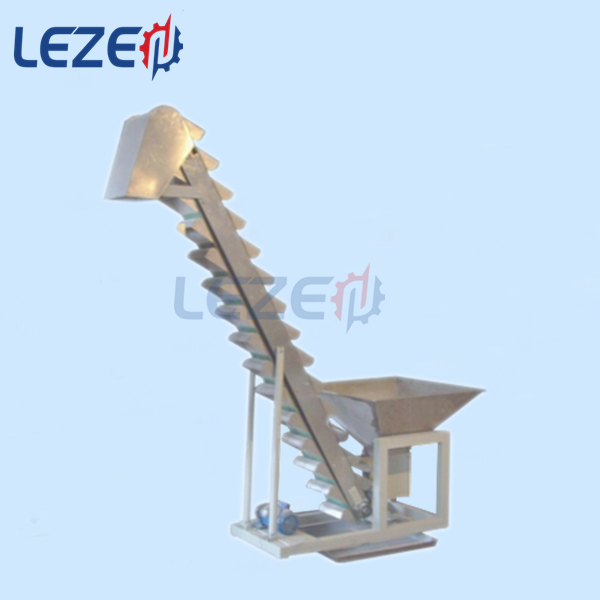

AT-XKT Rice feeding machine
This machine is suitable for feeding granular, strip, block and irregular material. The contacting part with material is made of stainless steel 304. It is easy to clean.
Technical Parameters:
Feeding speed: 3-6tph
Elevating height: 2.5(Customizable)
Size: L*W*H=2600*800*2800mm
Power: AC 380V 2000W

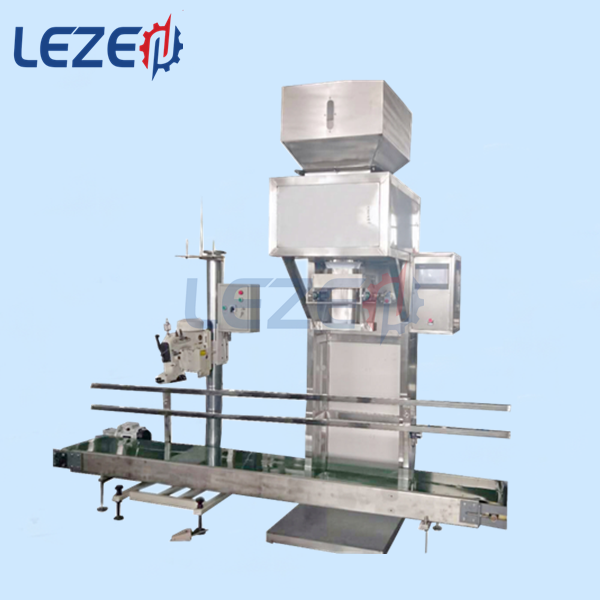

AT-DGS-50K Model Rice Packing Machine

This model of rice packing machine is specialized for rice intelligent packaging. Adopt pneumatic gate feeding or belt feeding mode, advanced non-pole frequency conversion technology.
The Rice Packing Machine is mainly composed of automatic weighing and packaging machine, conveyor machine, bag sewing machine, elevator feeding machine. It has the characteristics of reasonable structure, beautiful shape, convenient operation and accurate weighing.
This machine is mainly suitable for quantitative packing of Grain seeds(rice, wheat, soybean, peanut etc), Granular powder mixed, strip, block, Tobacco filaments and other materials, such as: fertilizer, animal feed, Chinese medicine granules, premix, soap powder, snack food, sugar, melon seeds, peanut, salt, monosodium glutamate, chicken essence, hardware and other granular materials quantitative packing.

Main Parameters:
Bag model: 10-50kg
Maximum weigh: 100kg
Packing speed： 4-6 bags/min
Packing precision:  ±0.3%-0.5%
Air source pressure:  0.4-0.6Mpa
Air consumption:   0.5Nm3/m
Weighing by: sensor
Frequency ratio/voltage:  50Hz/60Hz/220V/380V
Power: 2.2kw
Size: L*W*H=800*900*1900 mm (Rice storage bin is 2400 height)

Equipment Characters:

1. Use the weight measurement without bucket clip bag;

2. Stainless steel material;

3. Independent mounted sensor ensures stable signal transmission and ensures weighing accuracy

4. The host machine adopts electronic screen and PLC control technology;

5. The transmission belt, sewing machine, controller network, to ensure automatic operation to reduce labor intensity;

6. Infrared sensor, gate discharge, more energy saving;

7. The weighing control system is designed in accordance with the requirements of IP54 (dustproof and waterproof)

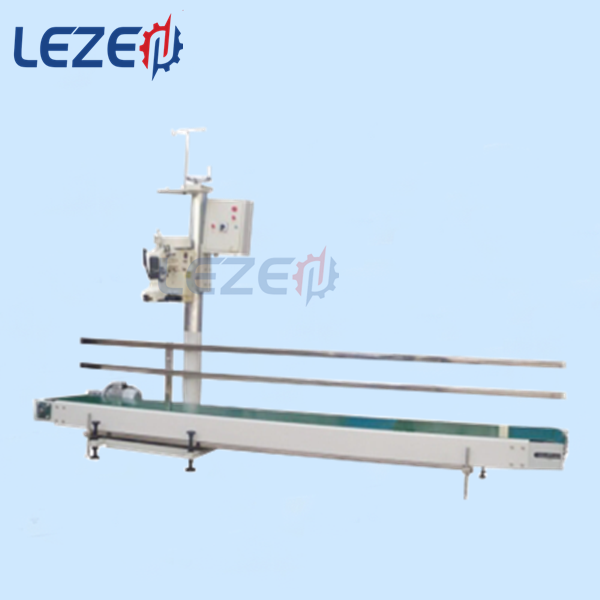

Belt conveyor bag sealing machine
Belt conveyor, with a single needle double sewing machine or automatic edge folding sewing machine; Line marks beautiful, firm, no leakage, suitable for long-distance transportation.Widely used in rice and other grain seeds, feed, port and other industries of particles, powder material high-speed transport sewing bag.
Technical Parameters:
Speed: 6-12m/min 300-600bags/hour
Bag height: 400-900millimeter
Bag weight: 10-50kg
Electricity motor: conveyor 370w, bag sewing machine 370w;  Power consumption: 0.74kw.
Total weight: 160kg
